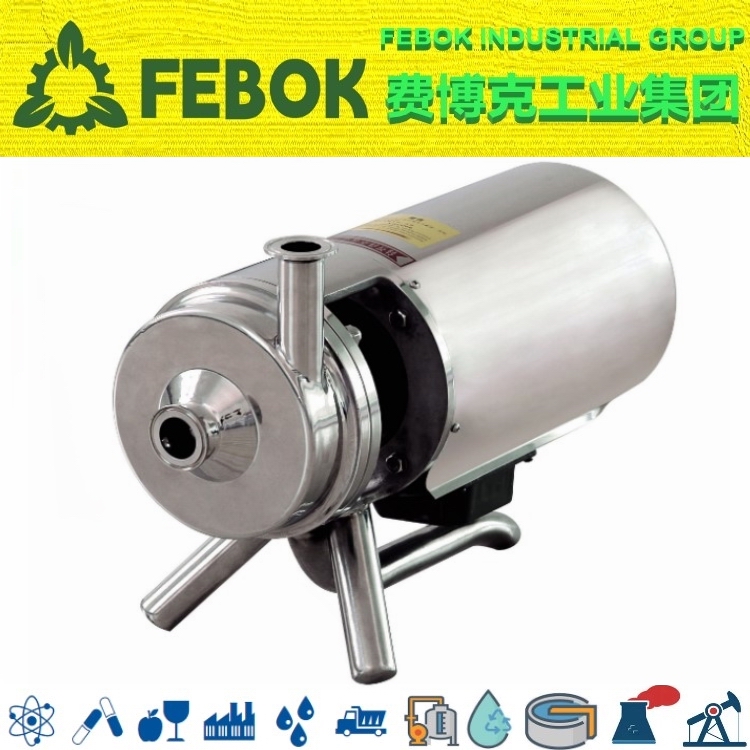

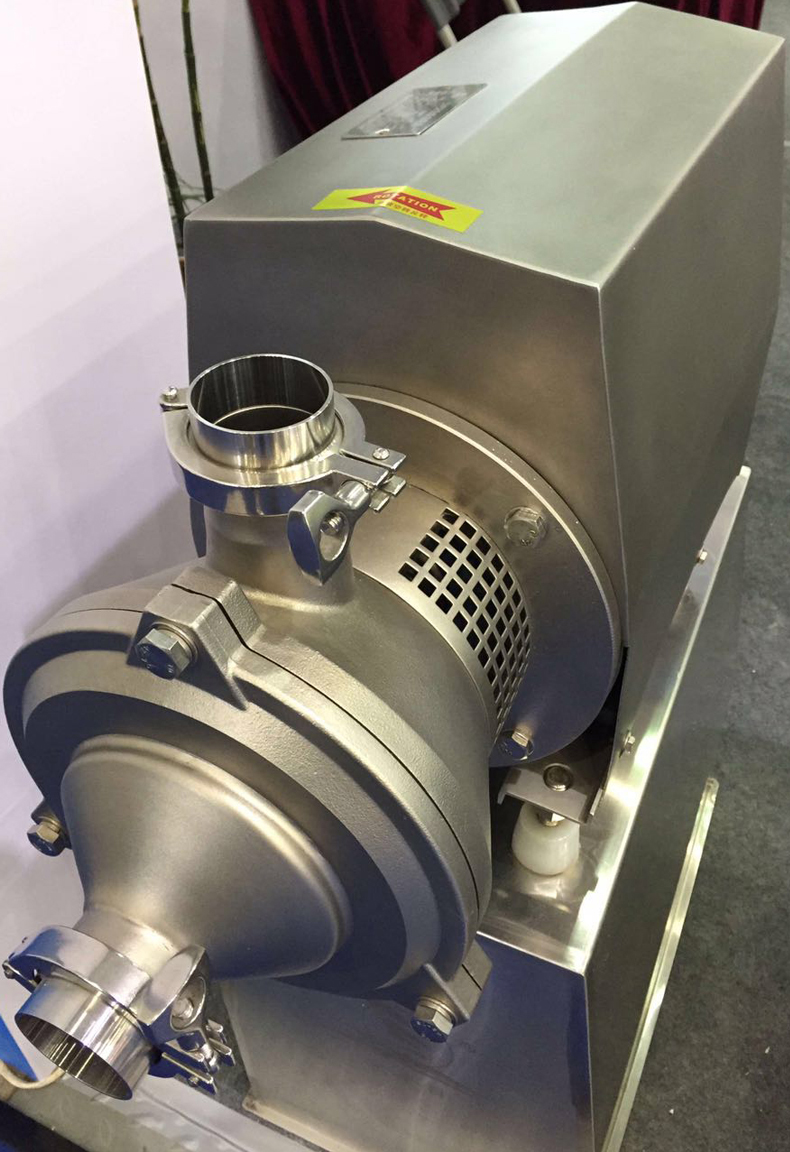

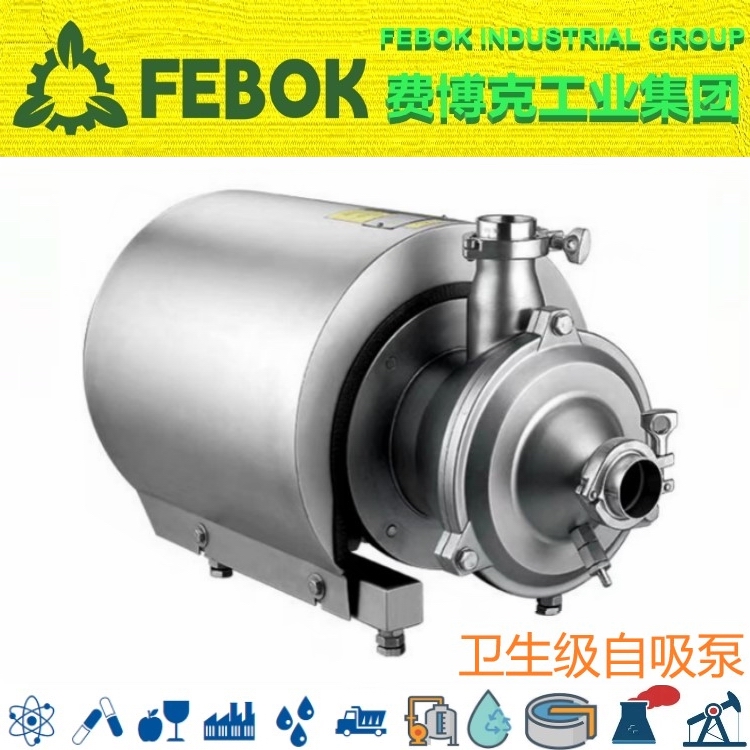

卫生级自吸泵

FEBOK INDUSTRIAL GROUP 美国费博克工业集团应用

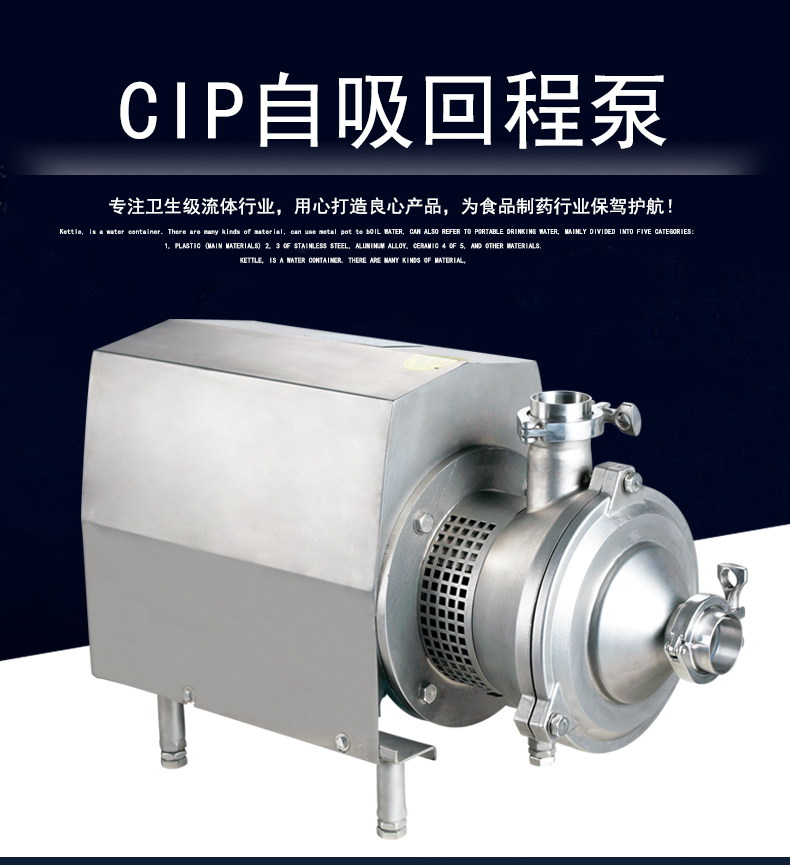

卫生级自吸泵是特别设计用来处理含有一部分气体的流体物料。此类泵可广泛应用于食品,化工、制药及类似要求的应用场合。特别是在(CIP)就地清洗系统中作回流泵。

材质

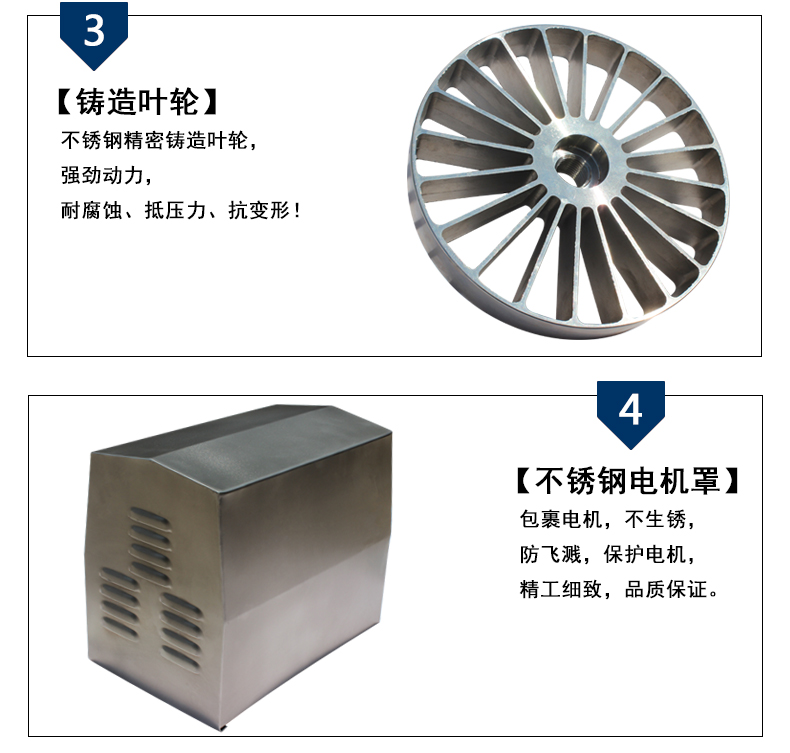

所有过液部件、泵壳、泵盖和叶轮均由AIS1316L不锈钢制造。电机护罩由AIS1304不锈钢制造，密封圈材EPDM乙丙橡胶制造。

过液部分材质:AISI316L不锈钢或 AISI304

其他部分材质:AISI304不锈钢

外表面磨光:喷吵亚光

内表面:抛光

过液密封材料:EPDM乙丙橡胶、硅橡胶标准设计

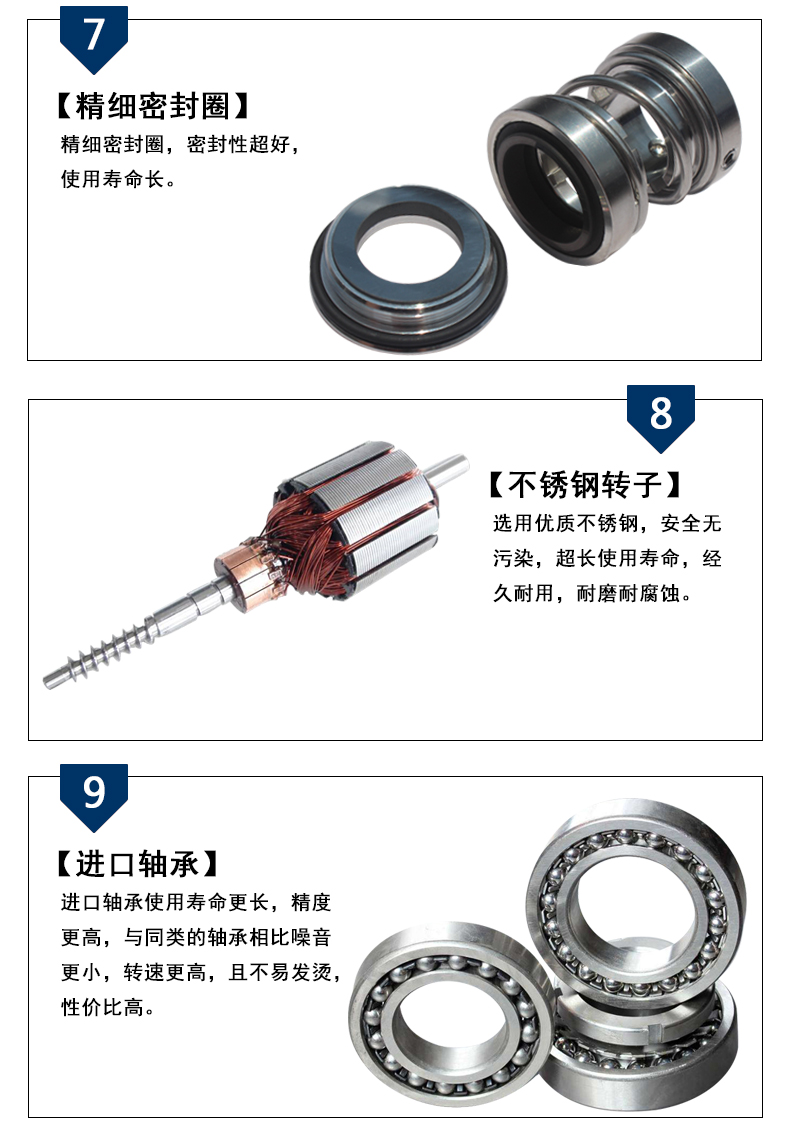

卫生机械密封机械密封的静环由AISI316L钢内嵌碳化硅构成,动环则由石墨制成。ZXBL泵有一个不锈钢的外罩保护马达,还有四个可调节的不锈钢支脚。

技术参数

最大入口压力:0.5Mpa

温度范围:-10°C到+140°C( EPDM)噪声水平( 1米处）:60~ 80db (A )电压和频率:3~5OHz,220~240V/

380 ~ 42oV/660~ 690/, A /Y电机型号:5OHz:4,5,5,7,5kw

Application

The XBL pump is a liquid-ring pump which is speciallydesigned for pumping liquids containing air or gas.The pumpis used in food,chemical, pharmaceutical and simliar industries.The pump can be used for CIlP- return.

Materials

All product wetted parts,pump casing cover and impeller aremade of acld-resisand steel AISI316L ,Motor shroud , is madeof stainless steel ASI304 Seals are made of EPDM rubber.productwettedsreel parte;stainless teel AISI304 or AlSI316LParts:Stainless teel AISI304

Outsidesur

face:semi bright

lnslde Surface: Bright

Product wetted seals: EPDM rubber

andard Design

Sanitary mechacal shaftseal

Mechanical single seal with staionary seal ring of caid-resistant steel AISI 316l with sealing surface in carbon androtating seal rings of silicon carbide.The pump has a stainlsssteel shroud for protection of the motor,and the complete unitis supported on four adjustable stainless steel legs.

Technical Data

Max, Inlet pressure:0.5Mpa

Temperature range:-10Cto+140°CEPDMNosie levelat 1m):60~80dB(A)

Voltage anf frequency:3~50Hz,220~240N

380~420/66O~690/,AfY

Motor sizes:50Hz.4,5.5,7.5kav
